Sota shelters are specially designed by BUNKER-OK for effective protection in confined spaces.
Suitable for installation inside houses, apartments, offices, warehouses, production and commercial premises without the need for specialized work. They can also be installed in the yard as separate above-ground, partially buried or completely underground structures.
Sota shelters allow you to organize protection where, for various reasons, it is impossible to install large shelters, and provide a protected space for accommodating from 1 to 7 people.
The frame of the shelters is made of heavy metal - profile pipe, angle and sheet metal, with a thickness of 6 mm. Walls: metal; metal with concrete inserts, sheathed with external and internal sheet metal panels. Reinforced concrete with a thickness of 60 mm and class C35/45, D12 A500 reinforcement is used for the inserts.

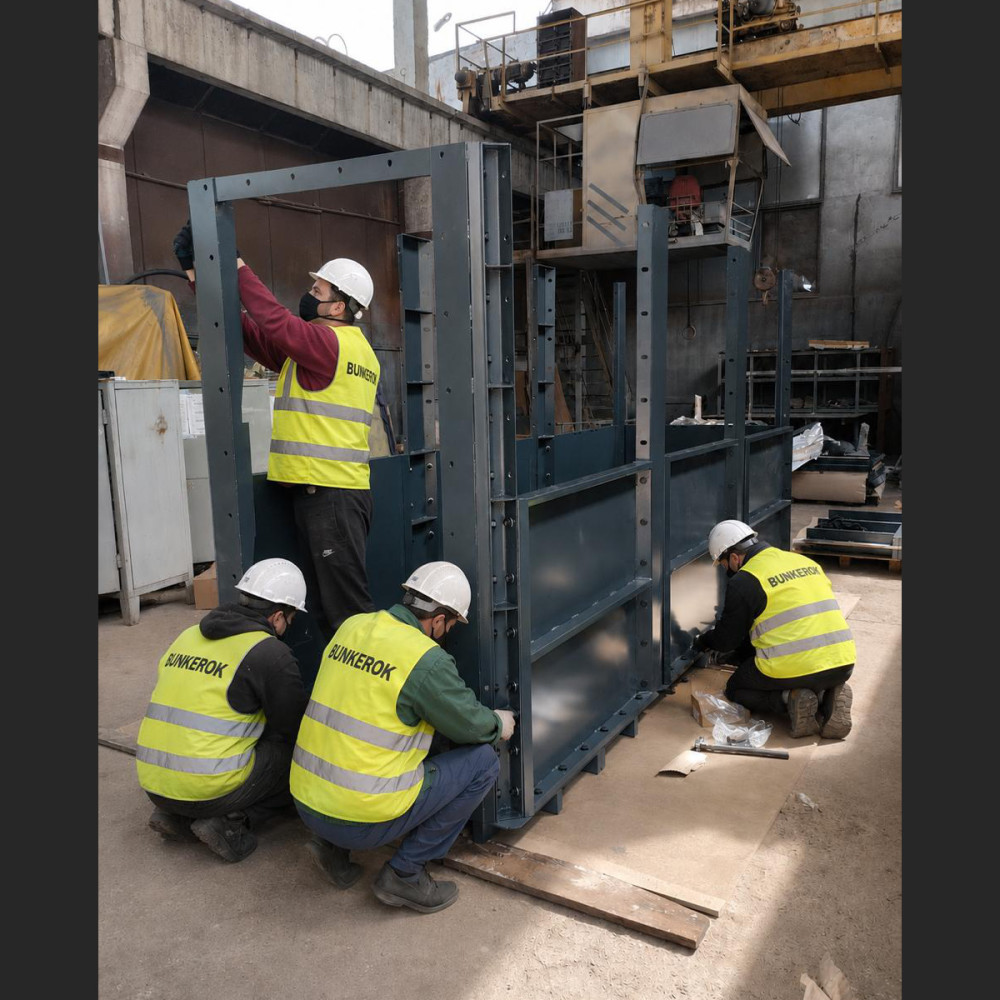

The elements are connected using robots, which provides stable weld quality. The modules are assembled using bolted connections with a diameter of 16 mm and a strength class of 5.8.
Design characteristics
- The Sota Compact 2 shelter is offered in a vertical version.
- Overall dimensions from: WxDxH = 1400 x 2962 x 2332 mm.
- Designed capacity (K=0.5): 6 people, actual 8 people.
They are connected together by separate modules in length, creating a common space with an internal passage. The module width is from 1400 mm.

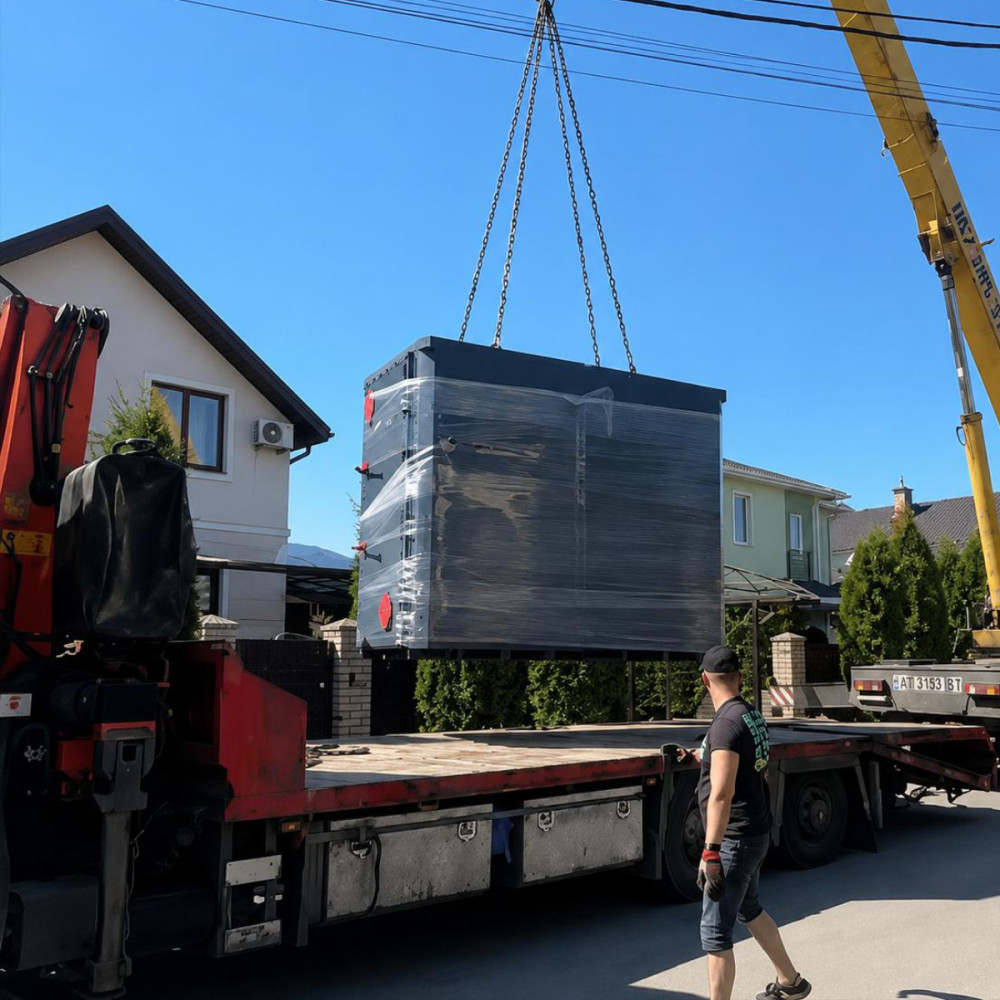

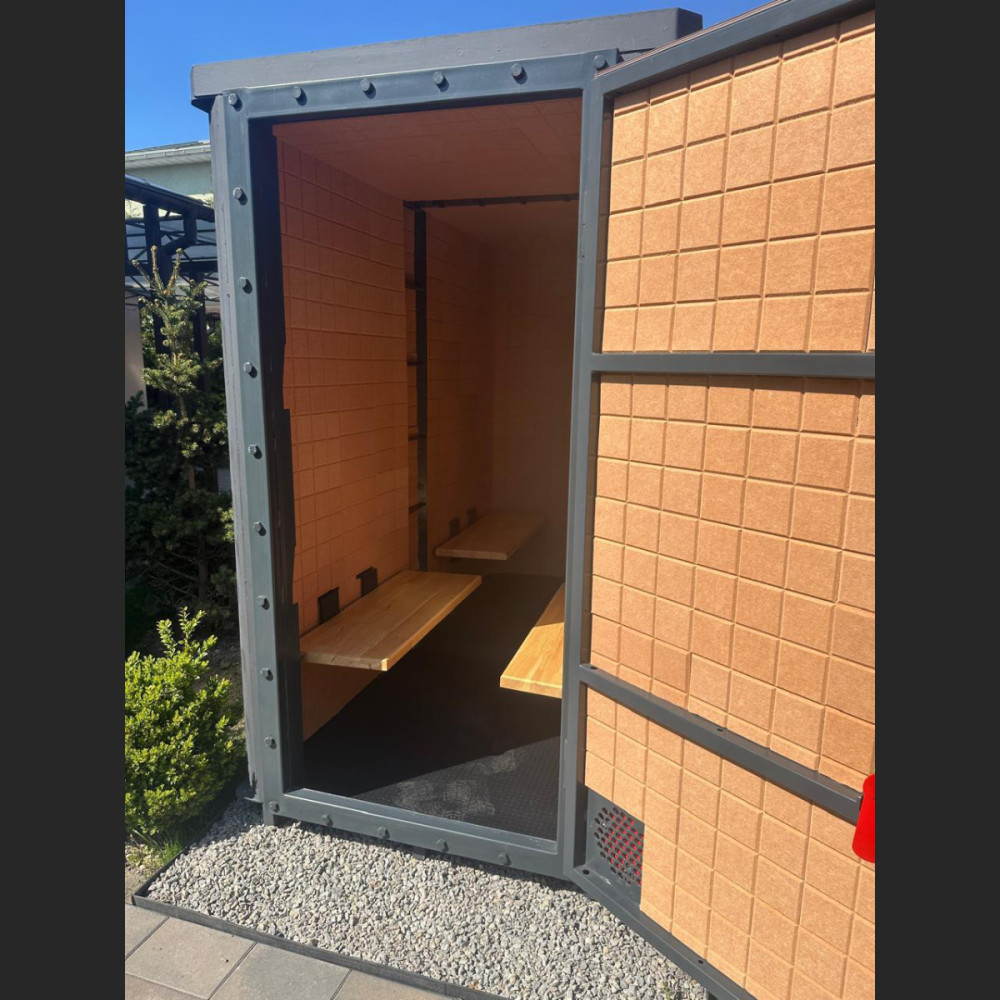

The iron shelter "Sota Compact" is made of heavy metal, connected by bolts. Protects against glass fragments and small fragments of brick or concrete. Can be delivered ready-made or assembled at the Customer's premises.

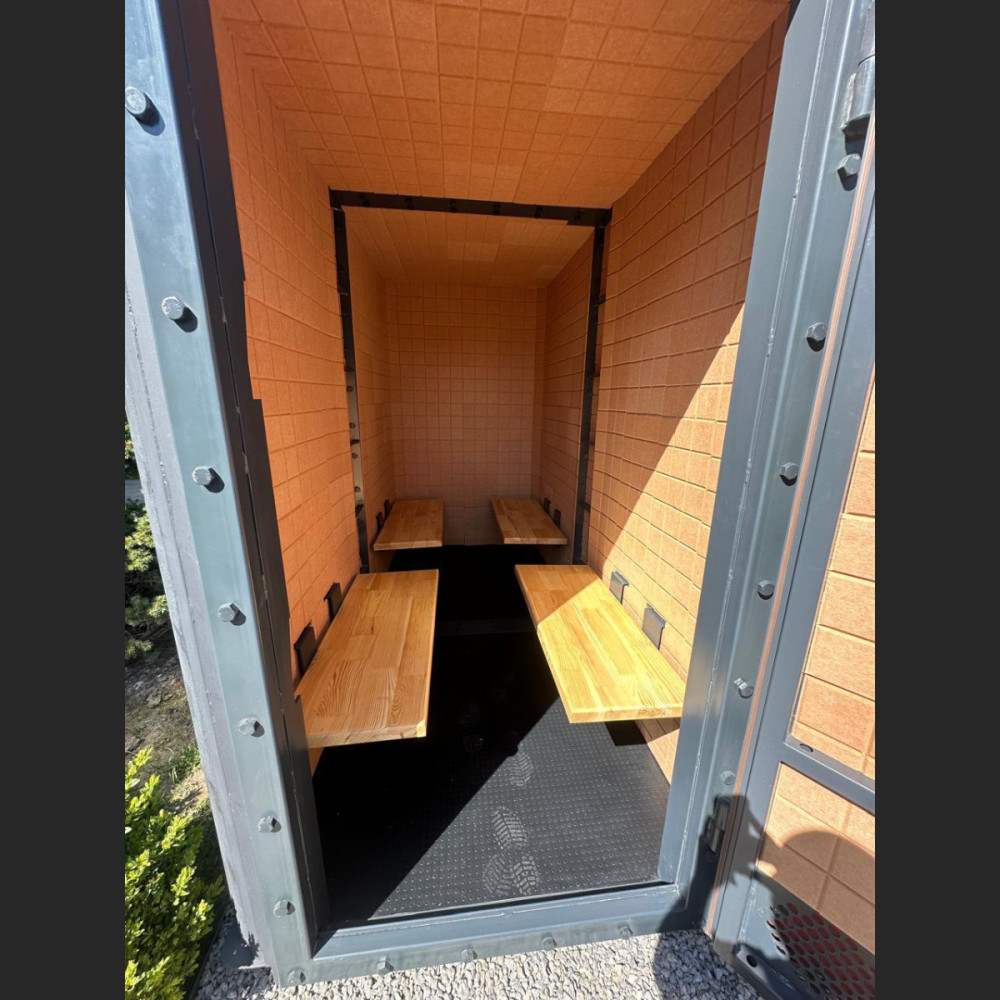

The Sota Compact shelter is equipped with a noise-absorbing inner covering (felt fabric), benches for seating, a fire extinguisher, a universal first aid kit, and autonomous lighting.
Perceives excessive pressure of a shock (air) wave of 100 kPa.
Upon additional request, we can equip it with: a professional ventilation and air conditioning system; a video surveillance and electronic access system; external insulation; an Internet router; an autonomous electricity storage system; a search GPS tracker; an emergency notification system for the State Emergency Service and the Ministry of Internal Affairs; embankment; gabions.
The price is indicated for a ready-made, assembled shelter, subject to self-delivery from the manufacturer's warehouse.
The price of the product is listed excluding logistics and installation. These costs are calculated separately upon request.
No questions about this product, be the first and ask your question.
BUNKER-OK is a Ukrainian engineering brand providing modern shelters and civil defense solutions for the private sector, business, and civil and strategic infrastructure.
We design and manufacture protective structures, systematically improving them based on practical operational experience, analysis of shelling consequences, and the actual behavior of structures during combat strikes.
Drawing on the experience of over 400 installed shelters, the BUNKER-OK team has reached an unequivocal conclusion: not every structure that looks like a shelter is capable of providing the proper level of protection.
We have studied actual destruction and structural weaknesses of low-quality installations, and we responsibly state: effective protection is determined not by the volume of concrete, but by structural integrity and a well-engineered reinforcing cage that stops shrapnel, localizes impact damage, and saves lives.
That is why the BUNKER-OK team is the first in Ukraine to establish CPS (Civil Protection Standard) — a next-generation quality standard.
CPS was created based on physical loads, engineering expertise, and field testing against modern combat threats, including:
- 120 mm OF-843 mortar shell
- 125 mm OF A-IX-2 tank shell
- HE-Frag warhead of the Shahed-136 strike UAV (47.8 kg)
In today's reality, the legally established testing standard of 2 kg of explosives (TNT) is increasingly becoming just a basic regulatory threshold. It rarely corresponds to the scale of modern threats, cannot be considered a comprehensive indicator of protection, and is not a convincing basis for evaluating a shelter's reliability.
The CPS quality standard by BUNKER-OK significantly exceeds current state requirements and sets a new safety benchmark for the market.
We are convinced: the CPS quality standard must become the fundamental basis of choice for every buyer and a new benchmark of quality for every shelter manufacturer.
